Create a chart to view your Completed cards by Team Member by Priority.

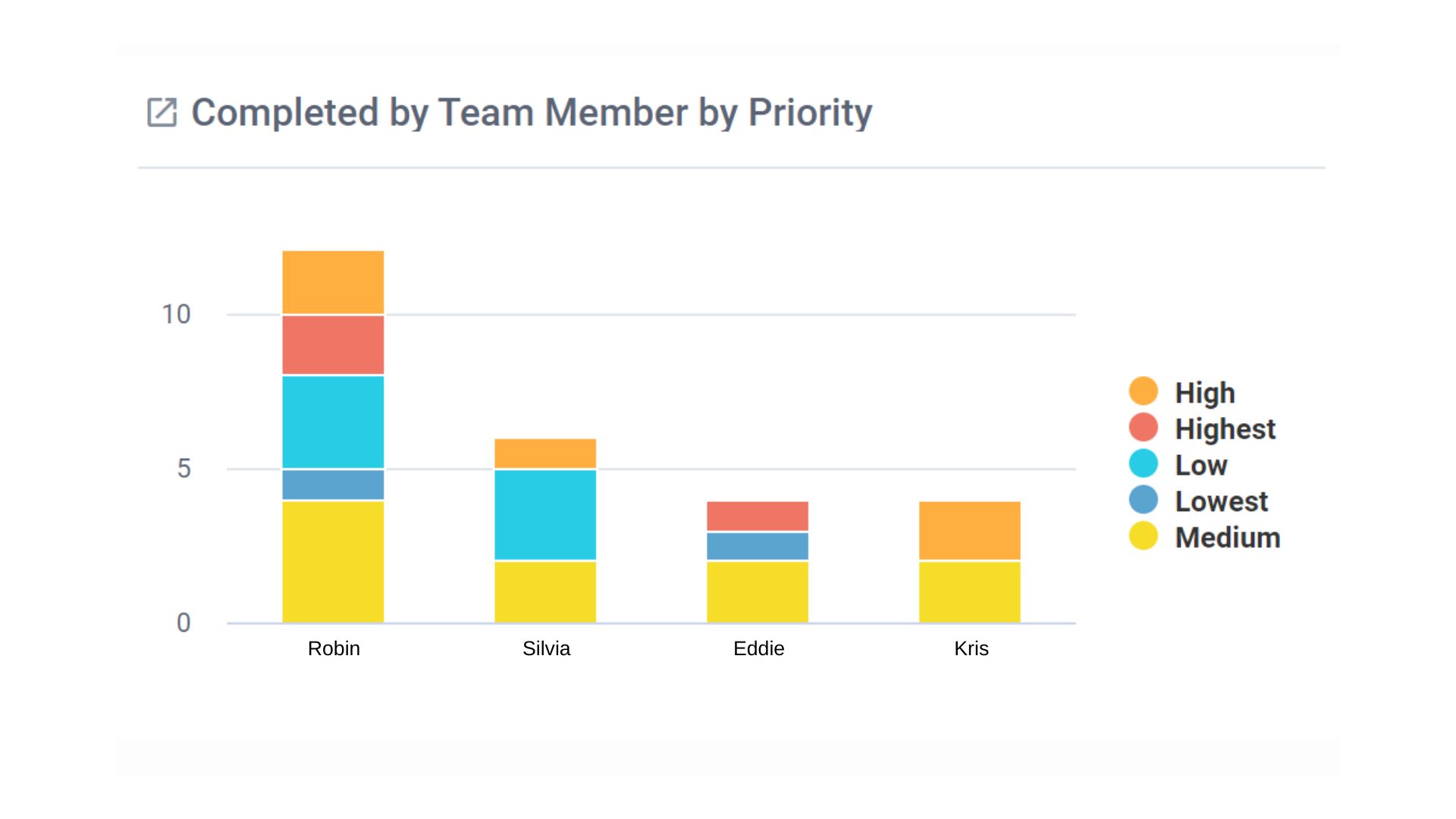

Completed cards by Team Member by Priority
- Create a new chart.
- Select "Stacked Bar Chart" from the Chart Type options.
- Select your chart width preference. This is how much space your chart will take up on your dashboard. For Stacked Bar Charts we recommend at least 1/2 width to best see all the Chart labels
- Select Completed Cards.
- Select which Board/s you would like to report on.
- Select your Completed Lists (you can search for Lists by typing in the box at the top)
- Select Primary Breakdown by Member.
- Select Secondary Breakdown by Priority to group your data based on custom field Priority.
If you are using Labels for Priority: Select to group by Labels at this step, we will filter later to only show the Priority Labels. We recommend using Custom Fields instead of Labels as it makes the integration a lot simpler and keeps your Trello Boards tidier.
Custom Fields is available with most paid Trello accounts.
- Select No Filter at this step so we show all Completed Cards.
If you are using Labels for Priority: Add a filter for Labels as well and select just those Labels which are Priority Labels.
- Give your chart a name. Hit the "Save" button, or press enter.
After you're finished...
Once you're chart is complete you can do the following:
- Drag and drop this chart tile anywhere you like within your dashboard.
- Hover your mouse over different parts of the chart to show further details on your specified data.
- Drill down (by clicking on the chart title) and see full details of completed Cards and the time they took.
Note: Drilldowns are only available once you click 'Done' in the top right.
